Message Tracing

Record breadcrumbs as messages flow through your system to debug distributed workflows and track processing timelines.

What is Message Tracing?

Message tracing lets you record events during message processing. Each trace captures a timestamp, event data, and optional categorization, creating a timeline of what happened to a message as it moved through your system.

Unlike traditional distributed tracing (OpenTelemetry, Jaeger), Queen's message tracing is message-centric - it tracks the lifecycle and processing history of individual messages within the queue system.

Basic Tracing

When you consume messages, each message gets a trace() method you can call to record events:

await queen.queue('orders').consume(async (msg) => {
  // Record start
  await msg.trace({
    data: { text: 'Order processing started' }
  })

  // Do work
  const order = await processOrder(msg.data)

  // Record completion
  await msg.trace({
    data: {
      text: 'Order processed successfully',
      orderId: order.id,
      total: order.total
    }
  })
}, { autoAck: true })

Key Properties:

• ✅ Safe - Never crashes your consumer (errors are logged but don't throw)
• ✅ Async - Call with await but failures won't break your flow
• ✅ Flexible - Store any JSON data you want

Trace Names - Cross-Message Correlation

The real power of tracing comes from trace names - they let you link traces across multiple messages to track distributed workflows:

// Service 1: Order Service
await queen.queue('orders').consume(async (msg) => {
  const orderId = msg.data.orderId

  await msg.trace({
    traceName: `order-${orderId}`,  // 👈 Link with this name
    data: { text: 'Order created', service: 'orders' }
  })

  // Push to inventory queue
  await queen.queue('inventory').push([{
    data: { orderId, items: msg.data.items }
  }])
}, { autoAck: true })

// Service 2: Inventory Service
await queen.queue('inventory').consume(async (msg) => {
  const orderId = msg.data.orderId

  await msg.trace({
    traceName: `order-${orderId}`,  // 👈 Same name = connected!
    data: { text: 'Stock checked', service: 'inventory' }
  })

  // Push to payments queue
  await queen.queue('payments').push([{
    data: { orderId }
  }])
}, { autoAck: true })

// Service 3: Payment Service
await queen.queue('payments').consume(async (msg) => {
  const orderId = msg.data.orderId

  await msg.trace({
    traceName: `order-${orderId}`,  // 👈 All connected!
    data: { text: 'Payment processed', service: 'payments' }
  })
}, { autoAck: true })

Now you can search for order-12345 in the Traces UI and see the entire workflow across all three services!

Multi-Dimensional Tracking

You can provide multiple trace names to organize traces by different dimensions:

await queen.queue('chat-messages').consume(async (msg) => {
  const { tenantId, roomId, userId } = msg.data

  await msg.trace({
    traceName: [
      `tenant-${tenantId}`,    // Track by tenant
      `room-${roomId}`,        // Track by room
      `user-${userId}`         // Track by user
    ],
    data: { text: 'Message sent' }
  })
}, { autoAck: true })

Query any dimension:

• Search tenant-acme → See all tenant activity
• Search room-123 → See all room activity
• Search user-456 → See all user activity

Event Types

Organize traces with event types for visual distinction:

await msg.trace({
  eventType: 'info',
  data: { text: 'Started processing' }
})

await msg.trace({
  eventType: 'step',
  data: { text: 'Validated data' }
})

await msg.trace({
  eventType: 'warning',
  data: { text: 'Slow operation detected', durationMs: 5000 }
})

await msg.trace({
  eventType: 'error',
  data: { text: 'Validation failed', reason: 'Invalid email' }
})

await msg.trace({
  eventType: 'processing',
  data: { text: 'Sending email' }
})

Available Event Types:

• info (default) - General information
• step - Processing step
• processing - Active processing
• warning - Warning condition
• error - Error occurred

Error Tracking

Use traces to record errors without breaking your flow:

await queen.queue('analytics').consume(async (msg) => {
  try {
    await msg.trace({ data: { text: 'Job started' } })

    const result = await computeAnalytics(msg.data)

    await msg.trace({
      data: {
        text: 'Job completed',
        recordsProcessed: result.count
      }
    })
  } catch (error) {
    // Record the error (safe - won't crash!)
    await msg.trace({
      eventType: 'error',
      data: {
        text: 'Job failed',
        error: error.message,
        stack: error.stack
      }
    })

    throw error  // Still fail the message for retry
  }
}, { autoAck: true })

Performance Tracking

Track timing and metrics:

await queen.queue('reports').consume(async (msg) => {
  const start = Date.now()

  await msg.trace({ data: { text: 'Report generation started' } })

  const data = await fetchData(msg.data)
  const fetchTime = Date.now() - start

  await msg.trace({
    data: {
      text: 'Data fetched',
      durationMs: fetchTime,
      rowCount: data.length
    }
  })

  const report = await generatePDF(data)

  await msg.trace({
    data: {
      text: 'Report generated',
      totalDurationMs: Date.now() - start,
      sizeKB: Math.round(report.size / 1024)
    }
  })
}, { autoAck: true })

Viewing Traces

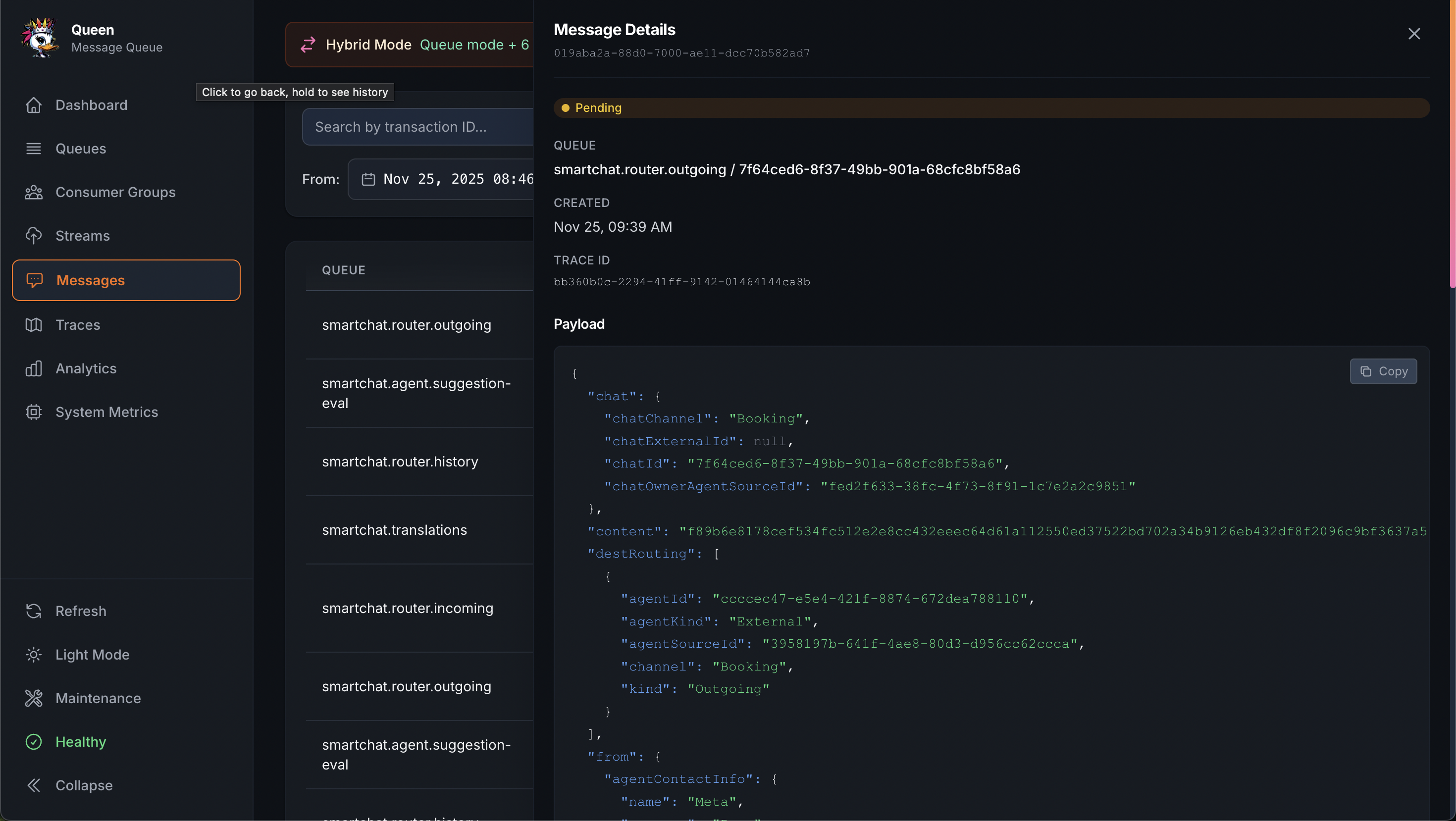

Method 1: From Message Details

1. Go to Messages page in the dashboard
2. Click on any message
3. View "Processing Timeline" with all trace events

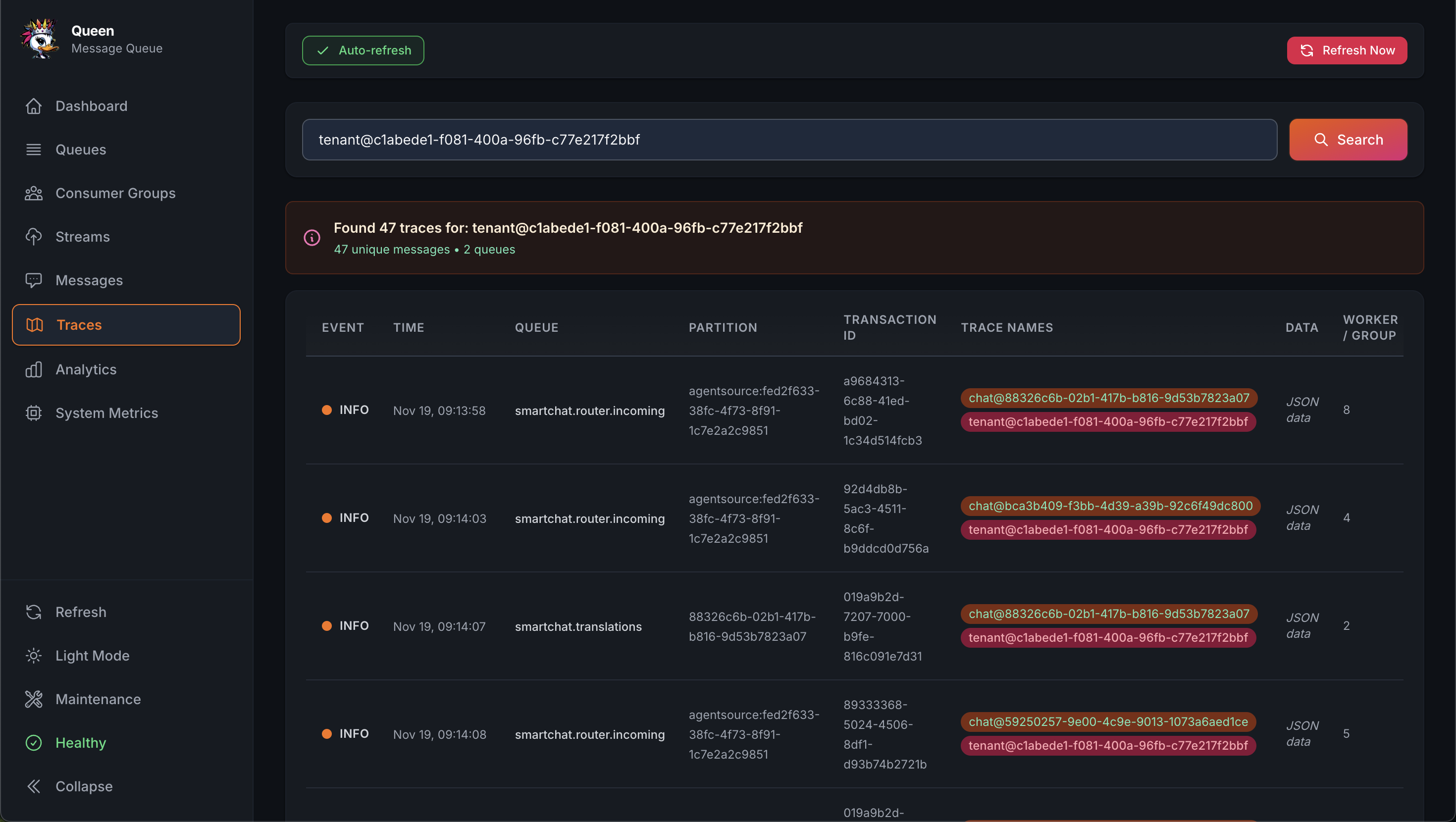

Method 2: Search by Trace Name

1. Go to Traces page
2. Enter a trace name (e.g., order-12345)
3. See timeline across ALL messages with that name

Method 3: Browse Available Traces

1. Go to Traces page
2. See list of all trace names with statistics
3. Click any trace name to view details

API Reference

Message Trace Method

Each consumed message has a trace() method:

await msg.trace({
  traceName: string | string[],  // Optional: name(s) for correlation
  eventType: string,              // Optional: 'info', 'error', 'step', 'processing', 'warning'
  data: object                    // Required: any JSON data
})

Parameters:

• traceName (optional) - Single string or array of strings for categorization

  • Use meaningful business identifiers: order-123, user-456, tenant-acme
  • Multiple names enable multi-dimensional tracking
  • Use hyphens/underscores for readability

• eventType (optional, default: 'info') - Type of event

  • info - General information
  • step - Processing step
  • processing - Active processing
  • warning - Warning condition
  • error - Error occurred

• data (required) - JSON object with trace data

  • Must include at least some information
  • Common pattern: { text: '...', ...extraData }
  • Can include IDs, durations, counts, errors, etc.

Returns: Promise<{ success: boolean, error?: string }>

Use Cases

1. Debug Distributed Workflows

Track messages as they flow through multiple queues and services:

await msg.trace({
  traceName: `workflow-${workflowId}`,
  data: { step: 'payment', status: 'completed' }
})

2. Multi-Tenant Operations

Track activity per tenant across all queues:

await msg.trace({
  traceName: `tenant-${tenantId}`,
  data: { operation: 'data-sync', recordCount: 150 }
})

3. User Journey Tracking

Follow a user's actions across your system:

await msg.trace({
  traceName: `user-${userId}`,
  data: { action: 'checkout', amount: 99.99 }
})

4. Performance Analysis

Identify bottlenecks with timing data:

await msg.trace({
  data: {
    step: 'database-query',
    durationMs: 1234,
    rowCount: 5000
  }
})

5. Error Investigation

Find where and why failures occur:

await msg.trace({
  eventType: 'error',
  traceName: `order-${orderId}`,
  data: {
    error: 'Payment declined',
    code: 'insufficient_funds'
  }
})

6. Audit Trails

Create compliance logs:

await msg.trace({
  traceName: [`tenant-${tenantId}`, `user-${userId}`],
  data: {
    action: 'data-export',
    timestamp: new Date().toISOString(),
    ipAddress: req.ip
  }
})

Best Practices

1. Use Meaningful Trace Names

✅ Good:

traceName: 'order-12345'
traceName: 'user-email-verification-abc123'
traceName: 'invoice-generation-2024-11-18'

❌ Bad:

traceName: 'trace123'
traceName: 'abc'
traceName: msg.transactionId  // Use business IDs, not transaction IDs

2. Include Context in Data

✅ Good:

data: {
  text: 'Payment processed',
  orderId: '12345',
  amount: 99.99,
  gateway: 'stripe'
}

❌ Bad:

data: { text: 'Done' }

3. Use Event Types Consistently

// Start with info
await msg.trace({ eventType: 'info', data: { text: 'Started' } })

// Progress with step
await msg.trace({ eventType: 'step', data: { text: 'Validated' } })

// Errors with error
await msg.trace({ eventType: 'error', data: { text: 'Failed', reason: '...' } })

4. Propagate Trace Names

Extract business identifiers from message data and use them consistently:

const orderId = msg.data.orderId
const traceName = `order-${orderId}`

// Use in all related traces
await msg.trace({ traceName, data: { step: 1 } })
await msg.trace({ traceName, data: { step: 2 } })

// Use when pushing to other queues (include in message data)
await queen.queue('next-step').push([{
  data: { orderId, ...otherData }  // Pass orderId so next service can trace
}])

5. Trace Both Success and Failure

try {
  await msg.trace({ data: { text: 'Processing started' } })
  await doWork()
  await msg.trace({ data: { text: 'Processing completed' } })
} catch (error) {
  await msg.trace({
    eventType: 'error',
    data: { text: 'Processing failed', error: error.message }
  })
  throw error
}

6. Don't Overuse Traces

Traces are for debugging and observability, not for storing business data. Use them strategically:

✅ Good: 3-5 traces per message for key milestones

❌ Bad: 50 traces per message for every tiny step

Important Notes

Safety Guarantees

• Never crashes - Trace failures are logged but don't throw errors
• Non-blocking - Doesn't impact message processing performance
• Fire and forget - Traces are stored asynchronously

Limitations

• Traces are tied to the message lifecycle - they're deleted when the message is deleted
• Not a replacement for application logging or APM tools
• Best for tracking queue-specific workflows, not general application traces

When to Use vs Application Logging

Use Message Tracing when:

• Tracking message flow across queues
• Debugging distributed workflows
• Correlating events across services
• Analyzing queue-based performance

Use Application Logging when:

• General application debugging
• Non-queue-related operations
• Detailed internal logic
• Security/audit events unrelated to queues

Related

• Consumer Groups - How to process messages with groups
• Dead Letter Queue - Handle failed messages
• Web Dashboard - View traces in the UI
• Transactions - Atomic operations
